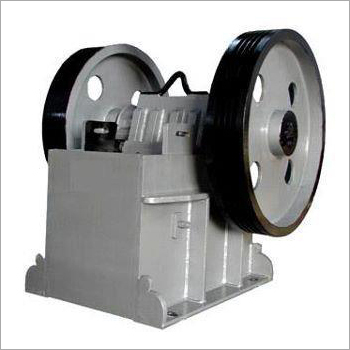

Double Toggle Jaw Crusher

Get a Price/Quote

Product Details:

Rotation Double toggle mechanism
Model Available in various models
Product Type Double Toggle Jaw Crusher
General Use Crushing hard rocks and ores
Material Mild Steel & Cast Steel
Type Crushing Equipment
Capacity 10 TPH to 100 TPH (model dependent)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Double Toggle Jaw Crusher Price And Quantity

Minimum Order Quantity 1 Unit

Reduction Ratio 6:1 to 8:1
Feed Size upto 750 mm
Frame Structure Welded or Bolted
Application Mining, Construction, Aggregate Processing
Working Speed 325 - 400 RPM (approx)
Crushing Method Compression
Lubrication System Oil Bath Type
Discharge Size 20 mm to 150 mm (adjustable)
Mobility Stationary
Jaw Plate Material Manganese Steel

Double Toggle Jaw Crusher Product Specifications

Rotation Double toggle mechanism
Voltage 415V, 3 Phase, 50 Hz
Weight (kg) 8000 kg to 18000 kg (model dependent)
Model Available in various models
Capacity 10 TPH to 100 TPH (model dependent)
Dimension (L*W*H) 3200 mm x 2500 mm x 2000 mm (varies)
Automatic No
Product Type Double Toggle Jaw Crusher
Color Yellow and Black
Type Crushing Equipment
General Use Crushing hard rocks and ores
CNC Or Not No
Computerized No
Control System Manual
Feature Heavy-duty construction, easy maintenance, high efficiency
Power 30-80 HP (model dependent)
Floor Space 3200 mm x 2500 mm (varies with model)
Material Mild Steel & Cast Steel

Reduction Ratio 6:1 to 8:1
Feed Size upto 750 mm
Frame Structure Welded or Bolted
Application Mining, Construction, Aggregate Processing
Working Speed 325 - 400 RPM (approx)
Crushing Method Compression
Lubrication System Oil Bath Type
Discharge Size 20 mm to 150 mm (adjustable)
Mobility Stationary
Jaw Plate Material Manganese Steel

Double Toggle Jaw Crusher Trade Information

Supply Ability 10 Unit Per Week
Delivery Time 1 Week

Product Description

By keeping track with the latest in market development, we are engaged in offering our clients a broad array of Double Toggle Jaw Crusher. The machine offered by us is manufactured by our professionals using premium quality components as per the defined industry standards. Double Toggle Jaw Crusher is acknowledged for consistent performance, easy installation, good strength, less maintenance and durability.

Rugged Construction for Demanding Applications

This jaw crusher's heavy-duty welded or bolted frame, combined with manganese steel jaw plates, renders it perfectly suited for intensive mining and construction projects. The robust structural design is engineered to withstand continuous high-impact crushing operations, offering dependable performance even with the hardest rocks and ores.

Optimized Performance and High Efficiency

Operating at speeds of 325 to 400 RPM, this crusher delivers consistent, efficient results. Its double toggle mechanism creates strong compression forces, ensuring a reduction ratio between 6:1 and 8:1, supporting output capacities from 10 TPH to 100 TPH, depending on the chosen model. Adjustable discharge sizes accommodate a variety of aggregate requirements.

Easy Maintenance and User-Friendly Operation

Maintenance is straightforward thanks to an efficient oil bath lubrication system and accessible design. Control is fully manual, offering reliability and ease-of-use without dependence on computerized systems. This simplicity enhances uptime and minimizes operational costs for users.

FAQ's of Double Toggle Jaw Crusher:

Q: How does the double toggle mechanism benefit jaw crusher performance?

A: The double toggle mechanism enhances crushing efficiency by generating strong compression forces during operation, which leads to a superior reduction ratio (between 6:1 and 8:1) and efficient processing of hard rocks and ores.

Q: What types of materials can this jaw crusher process?

A: The crusher is designed to handle hard rocks and ores, making it suitable for use in mining, construction, and aggregate processing environments where tough materials require robust crushing solutions.

Q: When should the oil bath lubrication system be checked and maintained?

A: The oil bath lubrication system should be checked routinely-preferably during scheduled maintenance-to ensure adequate oil levels and contamination-free operation, which helps maintain optimal performance and prolong machine lifespan.

Q: Where is the Double Toggle Jaw Crusher typically installed?

A: This stationary crusher is commonly installed at sites where substantial hard material crushing is required, such as mining operations, aggregate processing plants, and large-scale construction projects.

Q: What is the adjustment range for discharge sizes, and how is it controlled?

A: The discharge size can be adjusted between 20 mm and 150 mm, allowing operators to tailor output for different aggregate specifications. Adjustments are performed manually on-site, providing flexibility during operation.

Q: How does the welded or bolted frame structure impact maintenance?

A: Both frame options-welded and bolted-offer structural stability. The bolted frame provides easier on-site part replacement and repairs, while the welded frame delivers additional rigidity for heavy-duty applications.

Q: What are the advantages for users in choosing this jaw crusher?

A: Users benefit from robust construction, high throughput, energy-efficient operation, easy manual controls, and straightforward maintenance. These features lower operational costs, enhance productivity, and ensure reliability in demanding working conditions.
